Compact IP Terminal MIP-TERM-PRO
Product introduction
Datasheet download
Video
.
Functions:
- High performance ARM processor, can realize the excellent network audio transmission performance.
- B/S structure and can be managed via web browser.
- Advanced network structure design, support standalone running without server.
- High reliability and stability with industrial level.
- Communication delay < 50 ms.
- 3 triggers for EVAC/fire alarm available
- Built in 4 Timing program schedules to control the system automatically.
- Built-in 3W 8 ohms Amplifier, with audio input and output.
- Can upload music or upgrade software via USB or TF card.
- 12V~24V DC widely range power supply, POE function optional.
- Recording automatically function available for tracing.
- Relay control to fulfill industrial control over other systems.
- Support announce and intercom via dry contact trigger.
- Support 6.35 dynamic microphone.
Specification:
Power Supply: DC12V, 2A (12V~24V Wide Range)
Network Interface: 100M Base network, RJ45 port, 1.5KV Electric isolation, with transmission data indicating.
Line input: 1500m Vpp, Internal resistance 10KΩ, S/N Rate: 92dB.
Line Output: 1500mVpp, THD <0.3%, Internal resistance 500Ω, S/N rate: 89dBMic input: 50mVpp, Internal resistance 10KΩ, S/N Rate: 92dB.
Power Output: 3W (max 10W)
Speaker type: Available to connect with 8Ω speaker
Network Protocol: Support TCP, UDP, HTTP, RTSP
Dimension: 97*159*41mm; Net weight:0.4kg, Gross weight:0.7kg
Front Panel:

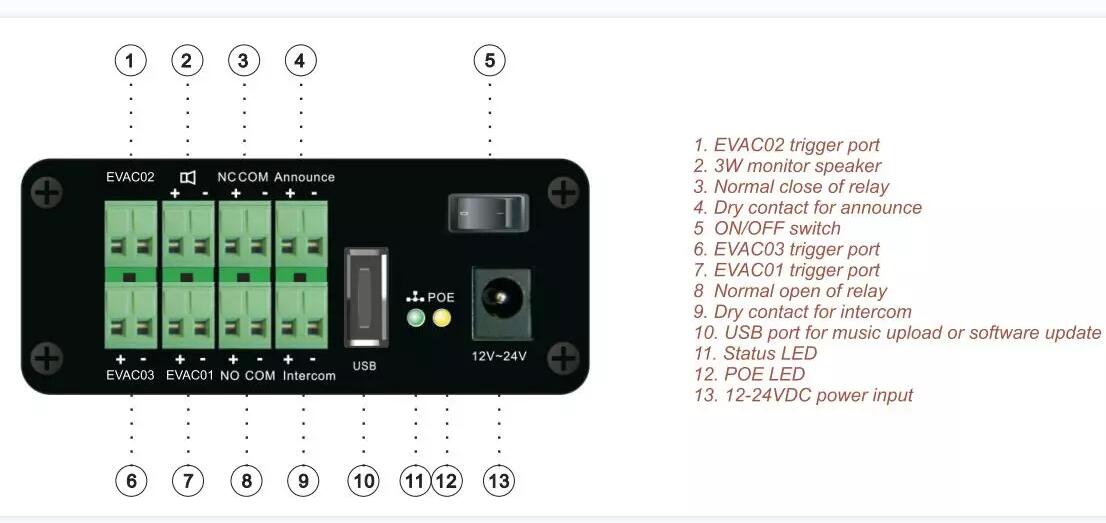

Back Panel:
