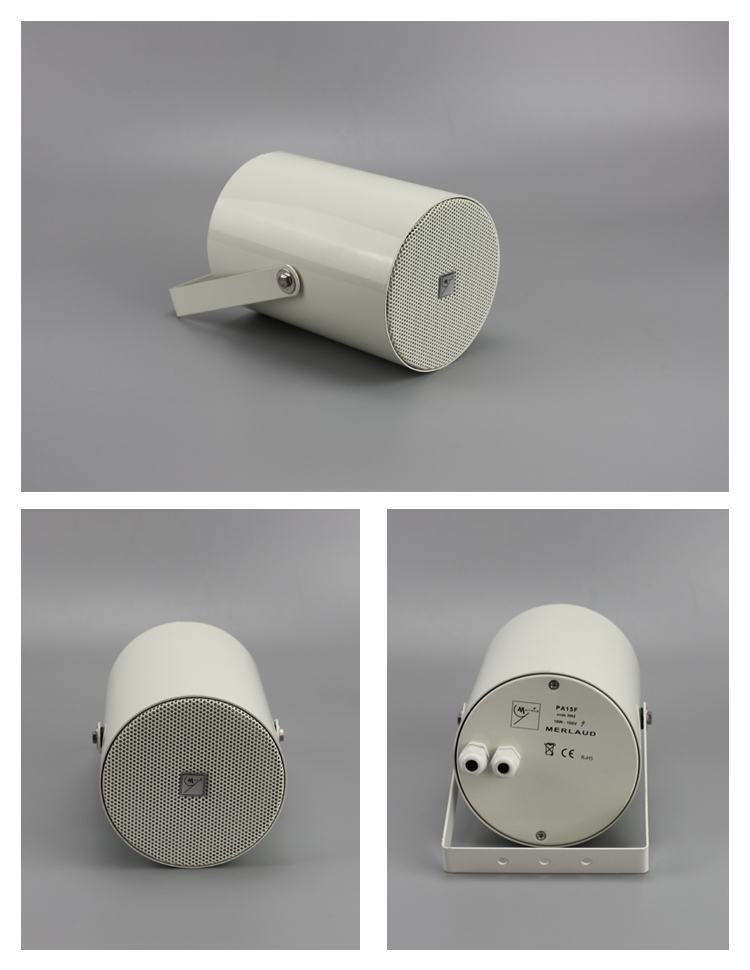

PA15F Aluminum Sound Projector
Product introduction
Datasheet download
Video
Features:
• Extruded cylindrical white painted aluminum
• Wide band speaker
• Impregnated low insertion loss multi-transformer
• Three models
• Unidirectional speaker
• Ldeal for music,speech and emergency messages
• Suitable either for indoor or outdoor use
• Ceramic fireproof connector
• Ceramic fireproof connector
Parameters:
Nominal Power(100V): 15W
Maximum Power: 30W
Frequency response: 90-18000Hz
SPL(max)1W@1m: 1W/1m 92-(104)dB
Connection: Terminal
Connection: Terminal
Impedances: 0,6/1,25/2,5/5KΩ
Jumper Power selector(100V): 15/8/4/2W
Dimensions WxHxD 160x250x155mm
Pack weight: Kg 2,5
Pack weight: Kg 2,5
