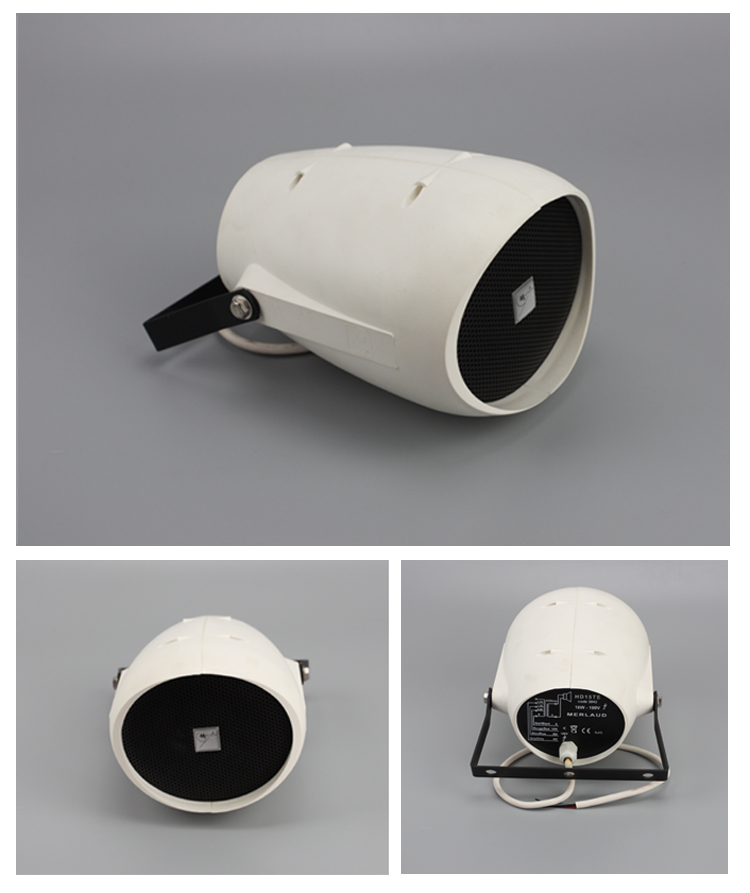

HD15TE Sound Projector

Product introduction

Datasheet download

Video

Features:

• Aesthetic,withc high performance "Design" speaker

• Closed cabinet with exceptional acoourstical qualities

• Moulded white colour ABS.Other colours on request

• Dual cones wide band silicon treated speaker

• Impregnated low insertion loss multi-taps transformer

• U shape mounting bracket with stainless steel screws
• Suitable for indoor use

Parameters:

Nominal Power(100V): 15W

Maximum Power: 30W

Frequency response: 100-18000Hz

SPL(max)1W@1m: 1W/1m 90-(98)dB
Connection Multi wires cable

Impedances: 0,8/1,7/3,4KΩ

Power selector(100V): 15/6/3W

Dimensions WxHxD 185x215x135mm
Pack Weight Kg,1,2

HD15TE
