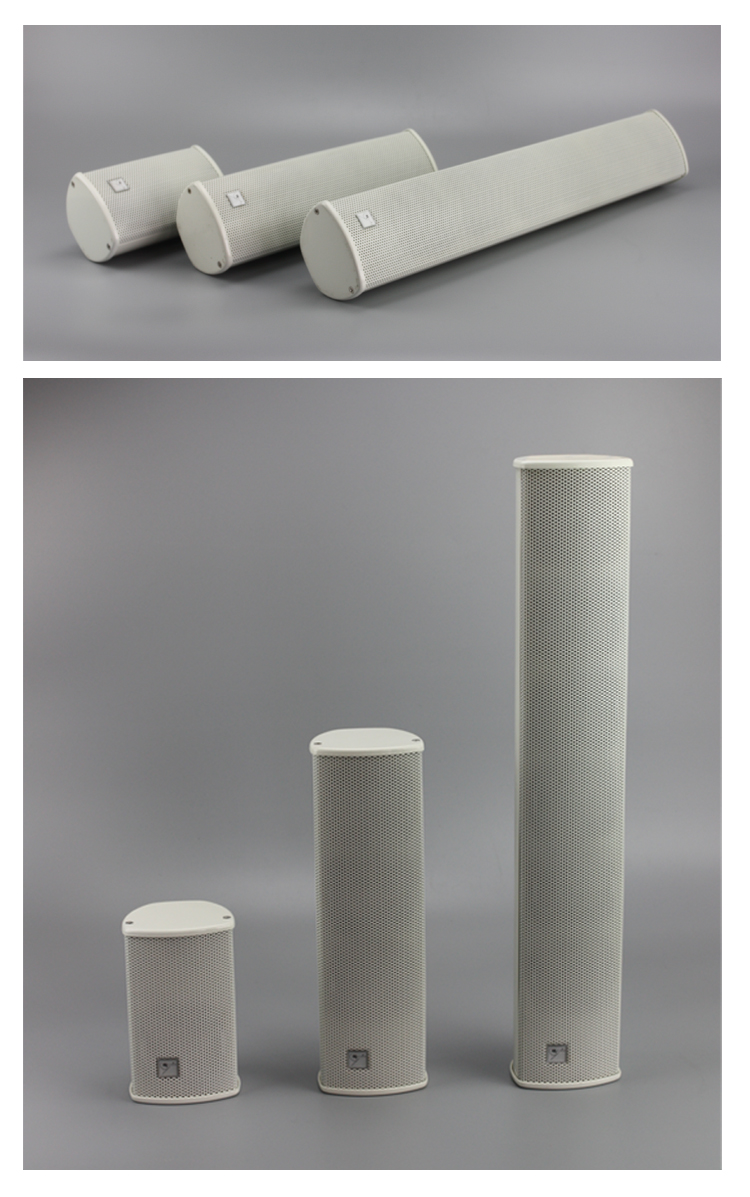

CA Aluminum Column Speaker
Product introduction
Datasheet download
Video
Features:
• Aesthetic with high performance cloumn speaker
• Extruded no-vibrating rigid aluminum body with aluminum grille
• Dual cones wide band silicon treated speaker
• Impregnated low insertion loss multi-taps transformer
• Easy mounting with Tilting bracket
• High directivity speaker ideal for reverberant halls and rooms
Parameters:
Nominal Power(100V): | 6W | 15W | 30W | 60W |
Maximum Power: | 10W | 30W | 60W | 120W |
Frequency response: | 150-20000Hz | 150-20000Hz | 150-20000Hz | 150-20000Hz |
SPL(max)1W@1m: | 1W/1m 88-(96)dB | 1W/1m 88-(101)dB | 1W/1m 88-(104) | 1W/1m 88-(107)dB |
Connection Punch-block connector | (internal) | (internal) | (internal) | (internal) |
| Impedances: | 1,7/3,3/6,7KΩ | 0,6/1,3/2,7/5,3KΩ | 0,3/0,6/1,3/2,5KΩ | 0,15/0,3/0,6/1,25KΩ |
| Jumper Power selector(100V): | 6/3/1.5W | 16/8/4/2W | 32/16/8/4W | 64/32/16/8W |
| Dimensions WxHxD | 110x110x180mm | 110x110x405mm | 110x110x625mm | 110x110x1205mm |
| Pack weight: | Kg 1 | Kg 1,7 | Kg 3,2 | Kg 5,5 |
